TRYCOM TECHNOLOGY CO.,LTD

3KV OPTIAL ISOLATED

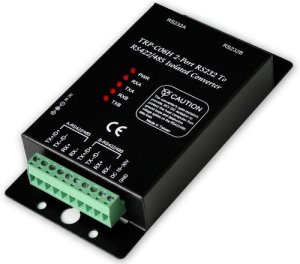

Dual TRP-C06H RS232 to RS422/485 Isolated Converter

The TRP-C06H allows 2 RS232 line signal to be bi-directionally converted to RS-422 or RS-485 standard and transmit data up to 1.2KM . Featuring automatic data format and baud rate detect function users just need to plug the unit and go without extra configuration efforts. TRP-C06H is equipped with 3000V DC of isolation and internal surge protection to protect the host computer and converter against high voltage spikes, as well as ground potential differences.

Wide range input DC power supply.
Automatic data format configuration.
Auto direction flow control on RS-485.
*Auto baud rate switching from 300bps to 115.2Kbps.
*3000V DC isolated protection.
*Surge protection on RS-422/485 data lines.
*Power/TX/RX mode LED indicator.
*Support screw terminal and external DC adaptor.
*DIN rail or panel mounts support.
