Industrial Modbus TCP IO

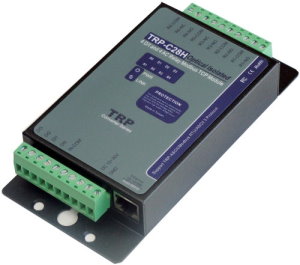

TRP-C28H Isolated 4 DI and 4 AC Relay Modbus TCP Module

TRP-C28H an Isolated Digital Input with counter and AC Relay Modbus TCP Module, provides 4 channels optical isolated digital input channels and counter and 4 Channel AC Relay that allow you to input the logic signal from +/- 0 to 30V DC and 5A /250V AC relay on network, it supports 3 communication protocol, TRP-ASCII, Modbus RTU / ASCII, TRP-C28H can be easy and convenient to use application supports Modbus.

*Wide input range DC power supply.
*Automatically determine 3 TRP-ASCII and Modbus RTU/ASCII communication protocol.
*16 TCP Port can be open at the same time.
*Heart Beat function ensures a reliable communicating connection.
*Support Virtual-COM mode.
*WEB PAGE can be directly read IO status.
*Back to factory configuration by external touch Button.
*Auto reconnection when power or Ethernet fail.
*Digital input signal from +/- 0 to 30V DC.
