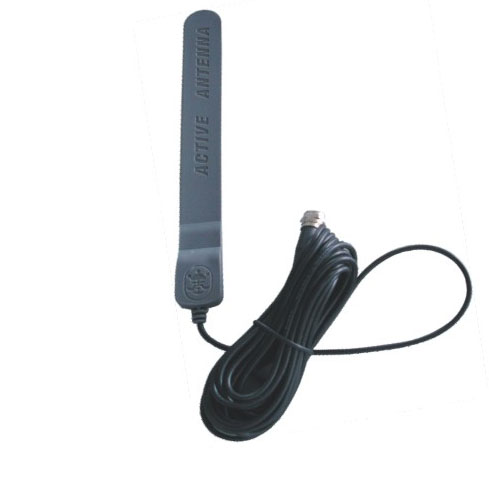

Waterproof Active TV Car Antenna (DVB-T/ATSC/ISDB-T)
2.For Car or Home use
3.Power gain typical 20dB
Impedance: 75 ohms typ.
Receiving frequency range:
VHF-H: 170~230MHz
UHF: 470~860MHz
Power supply from ANT cable directly supplied from receiver
Supply voltage: DV 5V +/- 10% 30mA maximum
Current consumption: 5V in 30mA maximum
Operating assurance temperature range: -20 to +60°C
Power gain: Typical: 20dB Minimum: 15dB
Coaxial cable: length 5m
connector: F plug, IEC plug, SMA plug, and MCX plug (optional)
Receiving frequency range:
VHF-H: 170~230MHz
UHF: 470~860MHz
Power supply from ANT cable directly supplied from receiver
Supply voltage: DV 5V +/- 10% 30mA maximum
Current consumption: 5V in 30mA maximum
Operating assurance temperature range: -20 to +60°C
Power gain: Typical: 20dB Minimum: 15dB
Coaxial cable: length 5m
connector: F plug, IEC plug, SMA plug, and MCX plug (optional)
