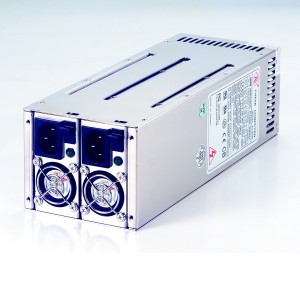

TC-400R2U
Voltage: 90~264VAC
Current: 8A/115VAC, 4A/230VAC
Frequency: 47~63Hz
Output:
+12V---28A
+5V----25A
+3.3V--25A
-12V---0.8A
-5V----0.5A
+5Vsb--2A
***MADE IN TAIWAN***
Features:
1. Universal full range
2. Active PFC
3. Hot swappable PSU zero down time
4. Power fault alarm signals
5. Efficiency: ≧ 73﹪at full load. (Normal Line)
6. Hold-Up Time: 16ms at maximum load & normal input voltage
7. PROTECTIONS:
OVER VOLTAGE PROTECTION
SHORT CIRCUIT PROTECTION
OVER POWER PROTECTION
8. Safety: UL, cUL, TUV, CB, CE, FCC, CCC.
1. Universal full range
2. Active PFC
3. Hot swappable PSU zero down time
4. Power fault alarm signals
5. Efficiency: ≧ 73﹪at full load. (Normal Line)
6. Hold-Up Time: 16ms at maximum load & normal input voltage
7. PROTECTIONS:
OVER VOLTAGE PROTECTION
SHORT CIRCUIT PROTECTION
OVER POWER PROTECTION
8. Safety: UL, cUL, TUV, CB, CE, FCC, CCC.
