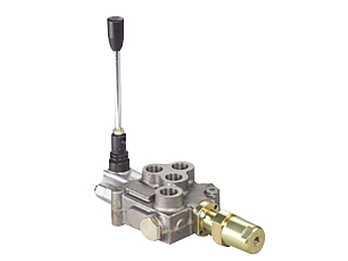

Monoblock Directional Control Valve - MB4

Monoblock Directional Control Valve

Monoblock Directional Control Valve for MB4 series and related specificaton follow below. Nominal Flow Rate: 60 L/min (MB-4), Operating Pressure (Maximum): parallel or tandem circuit: 315 bar, series circuit: 210 bar. Back Pressure (Maximum): onoutlet port T: 25 bar.

Look into these outstanding features:
1. Compact construction. Low pressure drop.
2. Long service life. High efficiency.
3. Choice of various operation methods, such as manual, pneumatic, hydraulic, and electro-hydraulic.
4. Choice of various ports and circuit valves.
5. Spring return.
6. High accuracy spool is hardened for long term accuracy.
7. Sub-plate mounting.
8. Handle shift operation.
