Horizontal Type of Veneer Slicer 薄片削片機

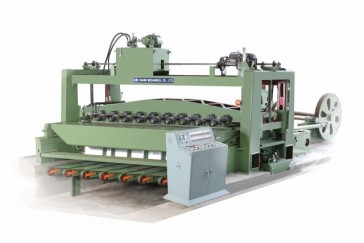

Veneer Slicer ZKA-10HVA
Max. Working Ability-3, 100m/m (L) , 650m/m (W) , 650m/m (H)
Slicing Speed-Max. 40 PCs/Min
Machine Weight-About 28 Tons
Main Slicing Power-40 Hp V.S.Motor
Clamps Power-10 Hp Hydraulic Pump With 20 PCs Hydraulic Motor
Vacuum Power-10Hp With Blower
Fixture Table Raising Power-5 Hp With Gear Reducer
Raising & Feeding Control-Switch With Pneumatic System
Feeding Thickness Ability Range-0.07m/m ~2.5m/m
Thickness of Rest Flitch-13m/m
