Cross Cutting of Veneer Guillotine

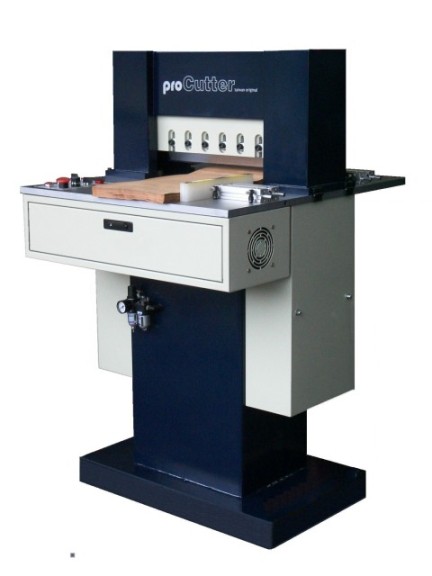

Veneer Guillotine PC-SCC400

Fully hydraulic system
Cylinder of pressing bar-φ63m/m X 1
Cylinder of knife table-φ80m/m X 1
Main cutting power-3 Hp with hydraulic units
Cutting capacity- Infinity (L), 400 m/m(W), 70 m/m (H)
Knife dimension-420 m/m(L) X 120 m/m(W)
X 12 m/m(T)
Machine weight-800 KGS
