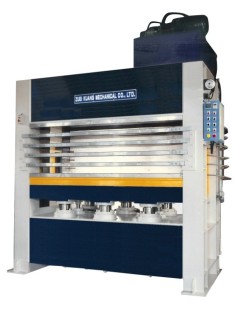

ZKHP-400-5
Descriptions ZKHP-400T
Pressing capacity 400 Ton
Table area 1, 360m/m X 2, 570m/m
Number of platen 6 PCs
Thickness of steeliness platen 1.5m/m (#304)
Stroke 450m/m
Diameter & Number of main rams Φ200m/m X6 PCs
Diameter & Number of downward rams Φ125m/m X 2 PCs
Max. use pressure 210 Kg/Cm2
Downward speed Approx. 4, 500mm/min
Upward speed Approx. 4, 500mm/min
20HP with automatic pressure and time control
