GOLDEN ROOT COMPANY LTD.

:Industrial Endoscope Video System

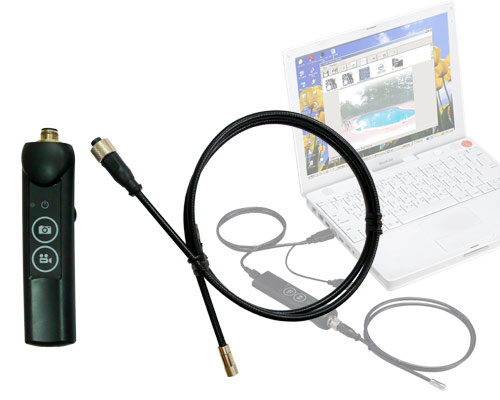

Portable Video Borescope / Portable Videoscope

Easy connect any computer, photo shooting & Recording ability, easy ability editing to file.

Specifications:
*Image Sensor: CMOS Image Sensor
*Resolution: 640(H)x 480(V)
*Tip Diameter: 5.5mm / 8mm
*Insert Tube Length: 1M~30M
*Frame Rate: 20~30fps
*S/N Ratio: 42db
*Exposure: Automatic
*White Balance: Fix
*Field of view (FOV): 67 degree
*Depth of Field (DOF): 1.5cm~10cm
*Light Source: White LED

System Specifications:
*Power: DC 5V
*Interface: Mini USB 2.0
*Video Format: NTSC
*Recording / Capture: 640 x 480 JPEG or 640 x 480 AVI according to PC or Notebook
