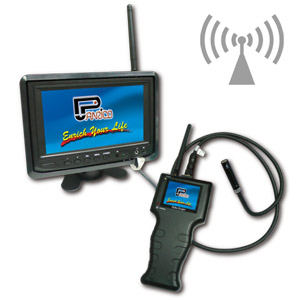

Wireless Portable Bore scope with / RX Devise / LCD Display
*Air / Water Pipe Cleaning
*Automotive / Motorcycle
*Aviation
*Marine / Machinery
*Mechanics
*Electronic Industry
Specifications:
*Frequency Range: 2400~2483.5MHz
*Channel Bandwidth: 1.8~2MHz
*TX Power:14~dBm
*RX Sensitivity:-81dBm
*Transmission Range:100 meters Line of sight
*Supply Voltage:3~3.6V
*Image Sensor:(CVBS) Composite Video
*Frame Rate: 25fps @320 x 240 QVGA (Typ) /15fps @640 x 480 VGA (Typ)
*Image Processing: AE, AWB, Bad Pixel compensation, Color reconstruciton
*Power Consumption: 280mA
*Operating Temperature: -10 ~ +60oC
*Image Processing: AE, AWB, Bad Pixel compensation, Color reconstruciton
*Power Consumption: 280mA
*Operating Temperature: -10 ~ +60oC
