DOUBLE-BLADE HEDGE TRIMMER
Engine Model: HU-26VL
(mm) Diameter of Cylinder / Stroke: 33 / 30
Engine Displacement: 25.6c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r / min) Standard Power: 1.4 / 7500
Mixed Fuel (Petrol) of Gasoline and 2 Cycle Oil at 25:1
Carburetor: Diaphragm Type
Ignition System: Electronic CDI
24 INCH DOUBLE-EDGED, DOUBLE-RECIPROCATING BLADE

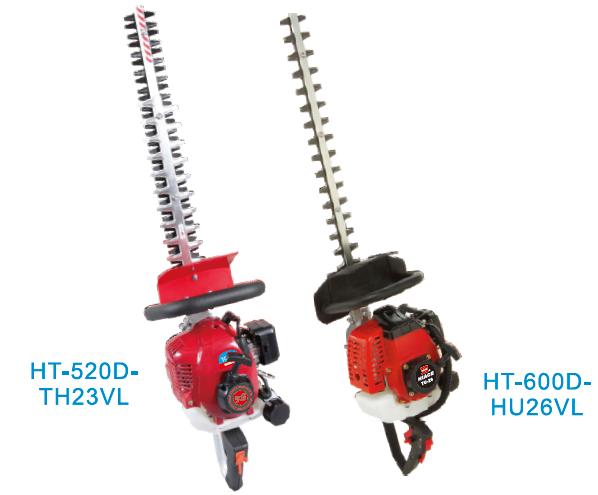

HT-600D-TH23VL / HT-520D-TH23VL HEDGE TRIMMER
Engine Model: TH23VL
(mm) Diameter of Cylinder / Stroke: 32 / 28
Engine Displacement: 22.5c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r /min) Standard Power: 1.4 / 7500
Mixed Fuel (Petrol) of Gasoline and 2 Cycle Oil at 25:1
Carburetor: Diaphragm Type
Ignition System: Electronic CDI
24 INCH DOUBLE-EDGED, DOUBLE-RECIPROCATING BLADE
Engine Model: TH23VL
(mm) Diameter of Cylinder / Stroke: 32 / 28
Engine Displacement: 22.5c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r /min) Standard Power: 1.4 / 7500
Mixed Fuel (Petrol) of Gasoline and 2 Cycle Oil at 25:1
Carburetor: Diaphragm Type
Ignition System: Electronic CDI
24 INCH DOUBLE-EDGED, DOUBLE-RECIPROCATING BLADE
