VERTICAL AUGER MACHINE
Engine: HT-358L / TL-43L / TB-43L
(mm) Diameter of Cylinder / Stroke: HT-358L: 36 / 30, TL-43L / TB-43L: 40 / 34
Engine Displacement: HT-358L: 34c.c., TL-43L / TB-43L: 42.7c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r / min) Standard Power: HT-358L: 1.9 / 7000, TL-43L / TB-43L: 2.1 / 7000
Carburetor: Diaphragm Type
Gear Ratio: 28:1

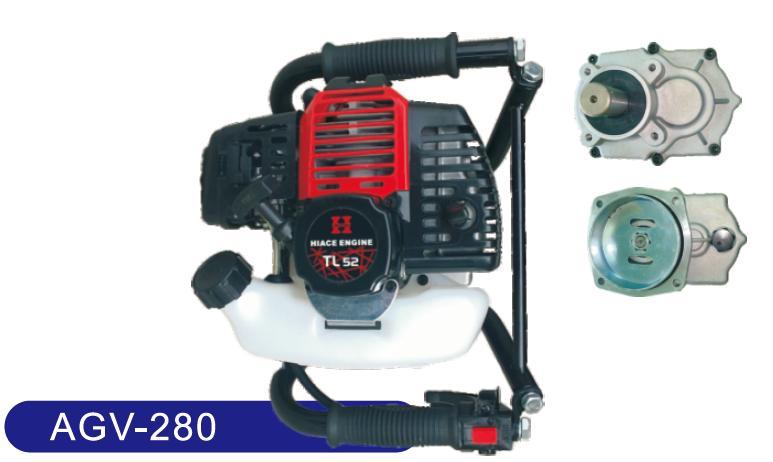

AGV-280-TL52 / AGV-280-TB52 AUGER MACHINE
Engine: TL-52L / TB-52L
(mm) Diameter of Cylinder / Stroke: 44 / 34
Engine Displacement: 51.7c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r / min) Standard Power: 2.3 / 7000
Carburetor: Diaphragm Type
Gear Ratio: 28:1
Engine: TL-52L / TB-52L
(mm) Diameter of Cylinder / Stroke: 44 / 34
Engine Displacement: 51.7c.c.
2 Cycle, Single Cylinder, Force Air-Cooled, Gasoline Engine
(HP / r / min) Standard Power: 2.3 / 7000
Carburetor: Diaphragm Type
Gear Ratio: 28:1
