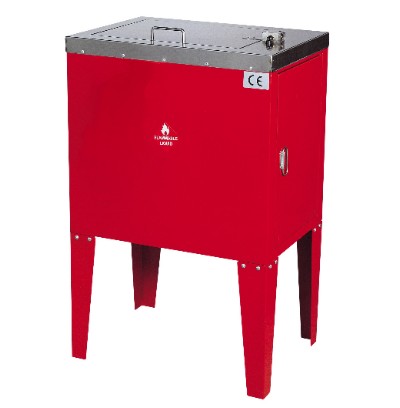

單隔膜噴槍清洗機
2. To be continue working 24 hours.
3. Easy to maintenance.
4. The pump is vibrated, the parts won`t be wore out, and changing parts is not necessary.
5. Paint sludge settles to bottom for easy drainage and disposal.
Maximum Air working pressure: 100psi
Air working pressure range: 40-60psi
Maximum air valve speed: 160 cycles/min (40psi)
Compression ratio of air to liquid: 1:1
Maximum liquid flow: 5GPM(19 liter per min.) water tested(3min.)
Gun capacity: 2
Air inlet port: 1/4"PT
Air outlet port:3/8"PT
Pump body/ material: Alu
Pump weight:2.15 kg
Net weight:33.5 kg
Overall dimension: 645 x 465 x1008mm
Lid cover material: Stainless Steel
Air working pressure range: 40-60psi
Maximum air valve speed: 160 cycles/min (40psi)
Compression ratio of air to liquid: 1:1
Maximum liquid flow: 5GPM(19 liter per min.) water tested(3min.)
Gun capacity: 2
Air inlet port: 1/4"PT
Air outlet port:3/8"PT
Pump body/ material: Alu
Pump weight:2.15 kg
Net weight:33.5 kg
Overall dimension: 645 x 465 x1008mm
Lid cover material: Stainless Steel
