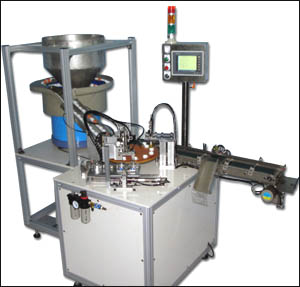

Thick liner insert machine
Outer diameter 25~55mm
Inner diameter
Liner material/thickness 0.5~1mm
Heigth of Cap 15~30mm
1. Special design for 1mm thickness liner, liner must flushed the shape, load the
magazine type.
2. Cap direction is chosen by vibratory disk, enter plate, then implant liner slice into
cap.
3. Finished product will check automatically, when cap lack of liner will pick up
automatically.
4. Two type available: with glue or without glue organization.
5. Produce speed 50~70pcs per minute.
6. Replacement thing size must replace the fixture.
