500W digital subwoofer amplifier
A.Introduction
FAD-1500B is 500W digital subwoofer power amp. It is for high-end active subwoofer system.
B.Specification
1. Power output @ 1% THD …… 500W/4Ω
2. THD………………0.2%
3. S/N Ratio @ rated power ………… > 95dB
4. Input sensitivity ………… @ 100mv/100Hz
5. Input Impedance ………………… 22KΩ
6. Variable low pass freq (24dB/OCT) ……… 40Hz - 180Hz

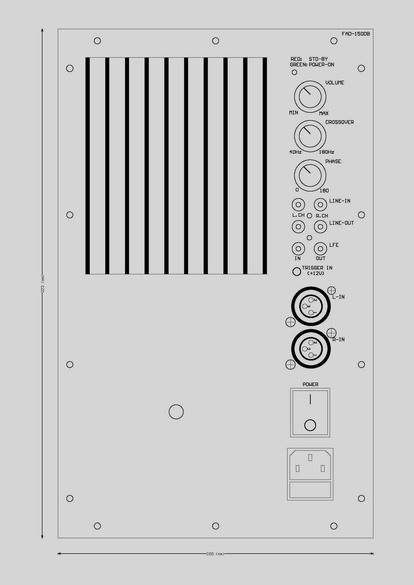

C. features
1.Digitalize amp.W/H high current output device 2.L/R CH female XLR jack I/P 3.Line level RCA jack stereo in 4.Line level RCA jack stereo out 5.LFE RCA jack in/LFE RCA jack out 6.Low pass frequency control 7.Subwoofer volume control 8.Build in anti-clipping circuit 9.Output short/thermal/DC offset protect circuit 10.Green LED for power on indicator 11.Red LED for Stand-by indicator 12.AC inlet W/H fuse holder 13.+12V Trigger Control 14.Music Detect Control
