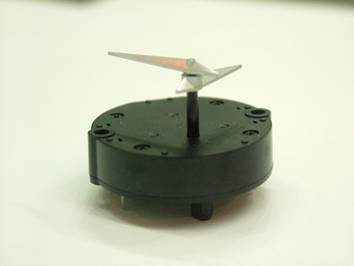

VID69 seriesCar Clock
is a precise stepping motor design, which consists of a motor and gear train with a reduction
ratio of 1/60 for the minute shaft and a 1/12 reduction for the hour shaft. It’s mainly used in
dashboard instrumentation or other digital indicator equipments, to display time.
- Wide working voltage: 5~10V.
- Wide working temperature: -40~105℃.
- Low current consumption: 18mA, 5V, 2X90mW.
- Small dimension: Ф30mm X 8.3mm.
- Directly driven by a µ-controller.
- Large static torque.
- Currentless static torque.
- Qualified for automotive applications.
- Wide working temperature: -40~105℃.
- Low current consumption: 18mA, 5V, 2X90mW.
- Small dimension: Ф30mm X 8.3mm.
- Directly driven by a µ-controller.
- Large static torque.
- Currentless static torque.
- Qualified for automotive applications.
