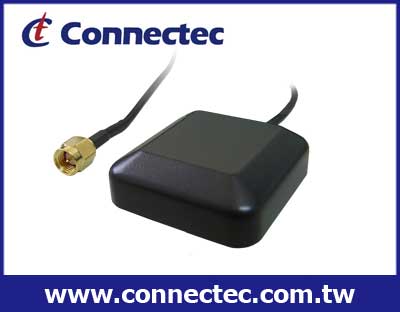

供应 外接车载GPS天线 SMA/MCX/MMCX

Ct-6180


This antenna system consists of two functional blocks, the LNA portion and the patch antenna.

1. RF Cable RG174, diameter :2.7+-0.3mm, Black Cable Length :1M /3M / 5M+-5cm
2. RF Connector SMA 180 deg (M) / SMA 90 deg (M)
TOTAL SPECIFICATIONS (Through Antenna, LNA, Cable and Connector)
1. Frequency Range :1575.42 +- 1.023MHz
2. Gain At 90 deg : 30+-4.5 dBi - (cable loss) mounted on the the 60mm*60m ground plane
3. Output Impedance 50 Ohm
4. VSWR 2.0 Max
