CONNECTEC ELECTRONICS CO., LTD.

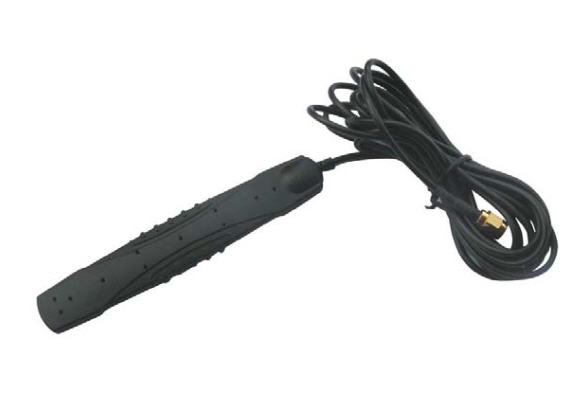

Sell 4G LTE/GSM/UMTS/3G/WiFi wireless Antenna SMA
Ct-LTE03-2
Features : This antenna is designed for LTE/GSM/UMTS/3G/WiFi wireless
Specification
◆ Operating Frequency : 700-960/1700-2700 MHz
◆ Antenna Type : Rectangle Patch antenna
◆ Mounting : Double-side tape
◆ Gain : 1-3 dBi
◆ VSWR : =1.9
◆ Power : 10 Watts
◆ Impedance : 50 ohms
◆ Polarization : Vertical
◆ Antenna Connector : SMA PLUG (Option)
◆ Cable Length : RG174 Length=3M
◆ Dimensions : L132xW22.5xH7mm
◆ Antenna color : Black
