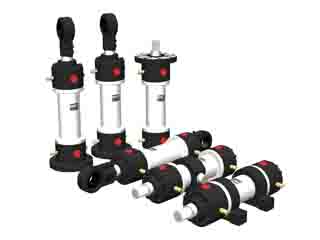

ISO 6022
– Standards: DIN 24333, ISO 6022 and VW 39 D 921
– 6 mounting styles
– Piston O: 40 to 320 mm
– Piston rod O: 25 to 220 mm
– Stroke length up to 6 m
Nominal pressure: 250 bar
Static proof pressure: 375 bar
Higher operating pressures on request.
HL, HLP, HFD-R: -20 °C to +80 °C
HFA: +5 °C to +55 °C
ISO cleanliness class
Stroke velocity: Up to 0.5 m/s (depending
Each cylinder is tested to Brant standards. Cylinders whose application data lies outside the stated values can be offered as a special version. Cylinders with piston φ > 320 mm are available on request. For assembly, commissioning and maintenance cylinders, please take the operating guidelines stated in catalogue into account!
