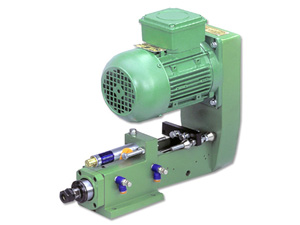

Auto Feed Drilling Spindle
DS3-60
Drilling capacity O6mm (S45C)
Spindle speed (max) 10500rpm
Spindle stroke 60mm
Electrical 0.37kw~2P or 4P, 220/380V
Thrust pressure Oil: 10kgs air: 5kgs
Chuck type ER-6, JT-1, JT-2
Radial cylinder area Forward: 12.6cm2
Backward: 7.1cm2
Net weight 24kgs
