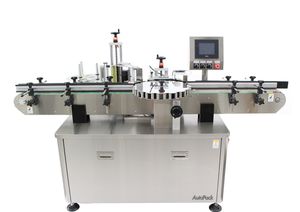

Rotary Round Bottle Labeler LR-435S
FEATURES:
Stepper Motor for fast and accurate labeling performan
Variable labeling / conveyor speed
Wrap Station make label well attached (Square Bottle compatible)
Perfect Through Beam Optic Fiber Product Sensing system
SPECIFICATIONS:
Stepper Motor Drivens
Labeling Speed: 20~60 pcs/min(Depends on Container and Label Size)
Bottle Size: Diameter 16~90mm / Height 30~160mm
Label Width: 10~100mm
Label Length: 20~300mm
Label Roll: Inner diameter 75mm / Outer Diameter 300mm
Power: single phase 110/220VAC, 50/60Hz
Machine Dimensions: (L)1234mm (W)839mm (H)540mm
(For reference only, the real drawing should be considered as final.)
Stepper Motor Drivens
Labeling Speed: 20~60 pcs/min(Depends on Container and Label Size)
Bottle Size: Diameter 16~90mm / Height 30~160mm
Label Width: 10~100mm
Label Length: 20~300mm
Label Roll: Inner diameter 75mm / Outer Diameter 300mm
Power: single phase 110/220VAC, 50/60Hz
Machine Dimensions: (L)1234mm (W)839mm (H)540mm
(For reference only, the real drawing should be considered as final.)
