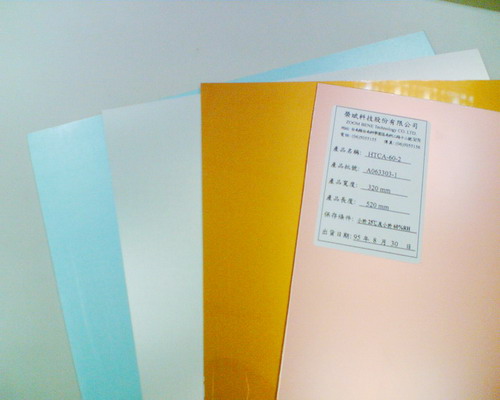

HTCA
銅 1, 2 OZ
絕緣層 60, 120 UM
鋁板 1, 1.5, 2 mm
Peel strength
(As received) ≧2.0 kgf/cm
(≧ 11.2 lbf/inch)
Solder Float Resistance 300℃/30sec pass
Chemical Resistance PASS
Flammability 94V0 pass
Surface Resistance (ohm) > E+14
Volume Resistance (ohm.cm) >E+15
breakdown voltage (KV) >2
Thermal conductivity (W/m.k) 1.5~3
Shelf life 6 month ( 25℃ 60RH)
85℃x85RH x10day
peel ≧1.6 kgf/cm
solder 300℃x30sec pass
ROHS PASS
(As received) ≧2.0 kgf/cm
(≧ 11.2 lbf/inch)
Solder Float Resistance 300℃/30sec pass
Chemical Resistance PASS
Flammability 94V0 pass
Surface Resistance (ohm) > E+14
Volume Resistance (ohm.cm) >E+15
breakdown voltage (KV) >2
Thermal conductivity (W/m.k) 1.5~3
Shelf life 6 month ( 25℃ 60RH)
85℃x85RH x10day
peel ≧1.6 kgf/cm
solder 300℃x30sec pass
ROHS PASS
