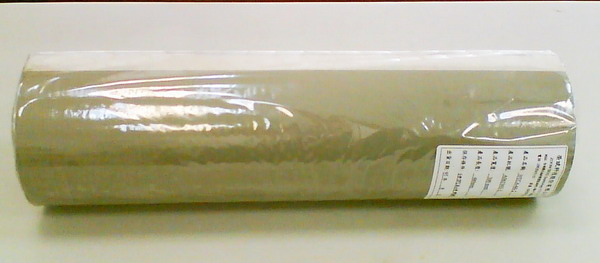

HTCP
厚度 60, 120 um
寬度 350, 520, 1020mm
長度 100M/R
高導熱膠片, 可配合客戶開發功能性產品
Test Items HTCA-120-1
Dielectric thickness (μm) 120±5
Peel strength
(As received) ≧2.0 kgf/cm
Solder Resistance 300℃/30sec pass
Chemical Resistance PASS
Surface Resistance (ohm)> E+14
Volume Resistance (ohm.cm)>E+15
breakdown voltage (Kv/AC) >3
Glass Transzition temp. ℃ 110
Thermal conductivity (W/m.k) 1.5
Test Items HTCA-120-1
Dielectric thickness (μm) 120±5
Peel strength
(As received) ≧2.0 kgf/cm
Solder Resistance 300℃/30sec pass
Chemical Resistance PASS
Surface Resistance (ohm)> E+14
Volume Resistance (ohm.cm)>E+15
breakdown voltage (Kv/AC) >3
Glass Transzition temp. ℃ 110
Thermal conductivity (W/m.k) 1.5
