Mobility Scooter Control System

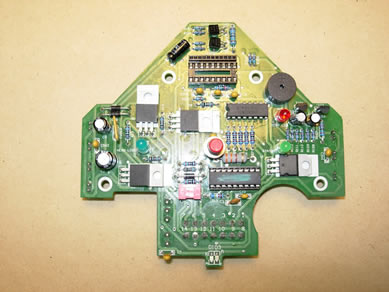

Top panel control board

The control board for Dynamic control or P&G Devices.

Digital control , mosfet design, SMD layout

Function:
1. Power: DC 24~30V
2. Head light: Max load 45W
3. Left light: Max load 30W
4. Right light: Max load 30W
5. Hazard light: Right +Left light
6. Horn: ON/OFF
7. 5K VR: Speed control
8. 25K VR: Micro speed control
9. Meter: Battery display
10. Reduce
11. Inhinbit
12. Controller operate: P&G S-DRIVES
