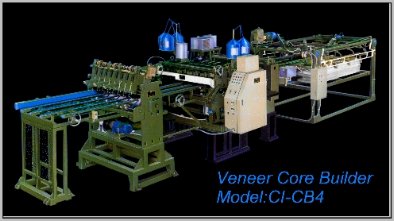

Veneer Composer / Veneer Core Builder
1. After tenderized using PLC controller to cut the edge, joint the core and piece cutting.
2. After the core has been tenderized. The strong blower device can remove the dust one the core veneer
Length of Knife 1350 mm Working Veneer Core Width 968 mm to 1270 mm (3ft. to 4ft)
Veneer Core Thickness 1.2 mm to 2.2 mm /2.0 mm to 5.0 mm
Feeding Speed 31m/min(Constant)
MOTOR
Tenderizer 2.2kw Feeding 3.7kw Heater 7.5kw Glue Applicator 0.2kw
Cool Fan 0.75kw X 3 Full-size Clipping 1.5kw Stacker Table Lifting 2.2kw Stacker Feeding 0.4kw Optional Accessories: Air compressor with 3.7kw motor
(required 7kg/cm air pressure. 1200 liters/min. free air
Veneer Core Thickness 1.2 mm to 2.2 mm /2.0 mm to 5.0 mm
Feeding Speed 31m/min(Constant)
MOTOR
Tenderizer 2.2kw Feeding 3.7kw Heater 7.5kw Glue Applicator 0.2kw
Cool Fan 0.75kw X 3 Full-size Clipping 1.5kw Stacker Table Lifting 2.2kw Stacker Feeding 0.4kw Optional Accessories: Air compressor with 3.7kw motor
(required 7kg/cm air pressure. 1200 liters/min. free air
