無鼓式全電腦織襪機 B306E
FULL-ELECTRIC JACQUARD
HOSIERY MACHINE
|
|

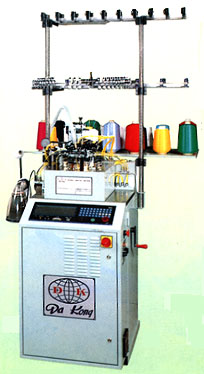

DK-B306E 全電腦織襪機
DK-B306E Full-electric drumless hosiery machine.
2路進紗加上4個提花口配合6組電子選針器，提高產品附加價值
2 Main-feeds and 4 pattern feeds plus mesh and motif
knitting makes it possible to have 12 pattern colors and 4 back-ground
colors in one course and make nearly all sorts of designs.
特點 Features:
◎6個獨立電子選針器 ，每組備有16個選針片
6 electronic-pneumatic selection groups
◎織物密度利用步進馬達直接控制
Stitch quality controlled by a programmable
stepping motor.
◎針筒直接由伺服馬達驅動
Cylinder directly driven by the servo-motor
without the
geartransimission and pneumatic cam
movements.
◎導針三角由氣動控制
Pneumatic cams give the possibility
to knit more different
consitruction then one can with the
traditional machines.
◎氣動導紗器 ， 第一口有七支 ， 第二口有四支，
另4個提花口各有三支
Programmable yarn fingers, 7 in the
1st main feed, 4 in the 2nd main
feed and 3 in each of the 4 color
feeds.
◎完善自我檢知系統及自我保護系統
The controller is protected against
short circuit, gounding and sudden
current peaks and its self diagnostic
function shows all errors on the
LCD and give an overall protection
to the machine against many
unexpected situations.
|
