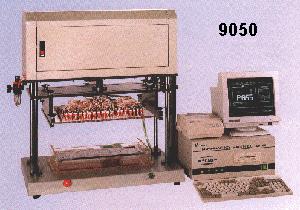

9050 MEMBANE & KEYSWITCH
OPEN/SHORT TESTER
(銘板及按鍵板斷路檢測機)


* 測試電壓(Test Voltage):15V
* 斷路判斷電阻值(Open Resistance) :
                                    1M-20M ohm.
* 短路判斷電阻值(Short Resistance) :
                                    50-20K ohm.
* 測試點數(Test Points):128-256 MAX.
* 測試速度(Test Speed):256 < 6 SEC.

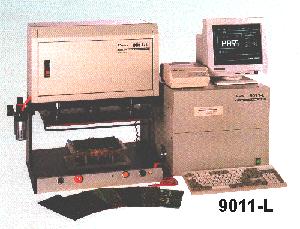

9011-L OPEN / SHORT TESTER
(印刷電路板斷短路檢測機)


* 測試電壓(Test Voltage): 15V, 45V-150V
* 斷路判斷電阻值(Open Resistance):
                         1M-5M, 1M-50M ohm.
* 短路判斷電阻值(Short Resistance):
                         50-20,  50-20K ohm.
* 測試點數(Test Points): 512-2048 MAX
* 測試速度(Test Speed): 2048 < 2 SEC.

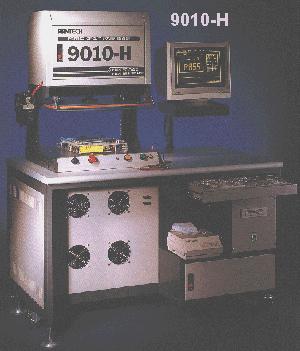

9010-H HIGH VOLTAGE &
RESISTANCE OPER/SHORT
TESTER
(高壓高阻斷短路檢測機)


* 測試電壓(Test Voltage): 45V-150V
* 斷路判斷電阻值(Open Resistance):
                                  1M-50M ohm.
* 短路判斷電阻值(Short Resistance):
                                  50-20K ohm.
* 測試點數(Test Points): 512-4096 MAX
* 測試速度(Test Speed): 4096 < 5 SEC.

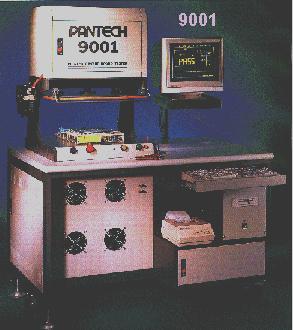

9001 CARBON RESISTANCE
OPEN/SHORT TESTER
(碳墨電阻斷短路檢測機)


* 測試電壓(Test Voltage): 15V
* 斷路判斷電阻值(Open Resistance):
                                   1M-20M ohm.
* 短路判斷電阻值(Short Resistance):
                                   50-20K ohm.
* 碳墨電阻值(Carbon Resistance):
                                   10-1M ohm.
* 測試點數(Test Points): 512-2048 MAX
* 測試速度(Test Speed): 2048 < 2 SEC.

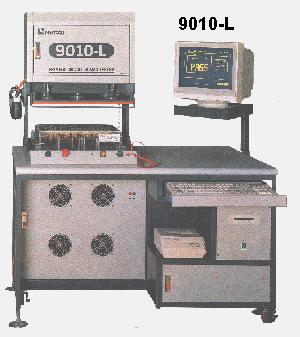

9010-L OPEN/SHORT TESTER (印刷電路板斷短路檢測機)



* 測試電壓(Test Voltage): 15V
* 斷路判斷電阻值(Open Resistance):
                                   1M-5M ohm.
* 短路判斷電阻值(Short Resistance):
                                    50-20K ohm.
* 測試點數(Test Points): 512-2048 MAX
* 測試速度(Test Speed): 2048 < 2 SEC.

TEST PROBE (測試探針)


Size: 00, 0, 1, 2, 25
Head: A, B, D, E, F, H, J, K, LM.

JIG PARTS (治具周邊材料)



* 牛角(CONNECTOR): 64 PIN
* 排線(FLAT CABLE): 34 OR 64 PIN
* 定位桿(GUID PIN): 4.5mm. 5mm. 6mm.
* 雙面用定位桿(DOUBLE SIDE GUID PIN):
                              6.0mm
* 列表紙(PRINTER PAPER): 82mm

(3-IN-1)WRIST STRAP-MONITORR-WATCH (手表式靜電環)



雙線路設計，不會傷害零件，
獨特手表式設計，讓您時時刻
刻知道接地線之好壞，省卻測
試次數及時間，避免因不知接
地線好壞造成之困擾．

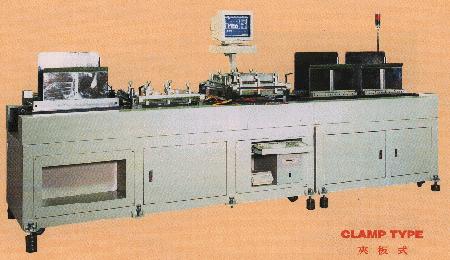

9030-HA AUTO FEEDING TESTER
(自動送料清孔測試機)


* 測試電壓 (Test Voltage): 45V-150V
* 斷路判斷電阻值 (Open Resistance): 1M-50M ohm.
* 短路判斷電阻值 (Short Resistance):  50-20K ohm.
* 測試點數 (Test Points): 512-2048 MAX
* 測試速度 (Test Speed): 720 PCS-1200 PCS/HOUR.


台北縣新店市民權路42巷59弄1號3樓
3F, No. 1, Alley 59, Lane 42, Ming Chuan Rd., Hsin Tien, Taiwan, R.O.C.
TEL: 9160550, 9160551　　FAX: 9152383

E-MAIL : pantech@tp.globalnet.com.tw
PANTECH ELECTRONICS CO., LTD.
